A pre-LVS electromagnetic modeling solution that combines the gold standard Ansys HFSS electromagnetic simulation engine with the silicon-optimized Ansys RaptorX engine.
Ansys RaptorH is an electromagnetic modeling software with capacity to model power grids, full custom blocks, spiral inductors, and clock trees. Its high-speed distributed processing delivers accurate, silicon-proven S-parameter and RLCk models. RaptorH can analyze partial and unfinished layouts during the design phase and makes it easy to use either the general purpose HFSS engine or the silicon-optimized RaptorX engine for silicon structures.

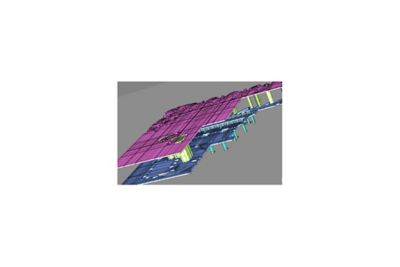

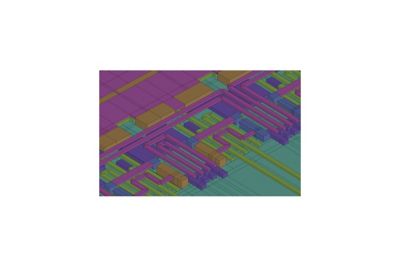

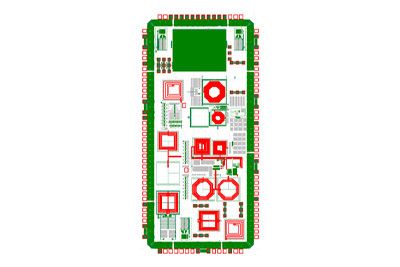

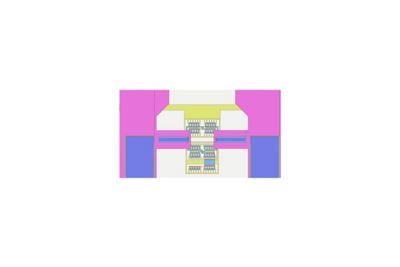

Ansys RaptorH extracts electromagnetic models at the pre-LVS stage for arbitrary routing and layout, including planes (solid or perforated), round shapes, spiral inductors, and MiM/MoM capacitors - with automatic setting of boundary conditions. The GUI allows point-and-click net selection and what-if analyses.
Nvidia applies Ansys Raptor EM analysis to de-risk high-speed serial links on silicon.
As chips grow in size, complexity and operating frequency, it becomes essential to accurately analyze electromagnetic coupling to ensure working silicon.
Ansys RaptorH electromagnetic (EM) modeling software is optimized for analyzing semiconductor circuits. It achieves the highest possible accuracy by combining both the gold standard Ansys HFSS engine with the silicon-optimized Ansys RaptorH engine. By making this choice transparent to the user, RaptorH provides unrivalled capacity to model arbitrary complex silicon structures.
RaptorH is supported by all major silicon foundries and can read encrypted technology files to set up analyses with either the HFSS or the Raptor engine.

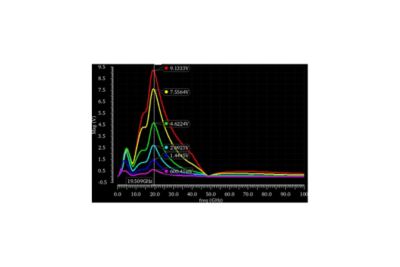

With RaptorH, RLCk modeling and simulation is completed in minutes instead of hours. Furthermore, its speed accelerates linearly with the number of cores. RaptorH benchmarks the accuracy of its modeling engines against lab-measured data from hundreds of devices implemented in silicon every year. The pool of measured devices now numbers over 3,000 and covers frequencies up to 110GHz.
Ansys RaptorH electromagnetic (EM) modeling software is optimized for analyzing semiconductor circuits, and achieves the highest possible accuracy by combining both the gold standard Ansys HFSS engine with the silicon-optimized Ansys RaptorH engine. RaptorH’s unrivalled capacity and modeling speed calculates RLCk parasitics for complex circuits such as power grids, full custom blocks, spiral inductors, MiM/MoM capacitors and clock trees. RaptorH does not require boundary conditions or special ports, and the GUI supports easy graphical net selection. RaptorH works with all circuit simulator physical implementation platforms.
The fastest and most accurate EM extraction and modeling for pre-LVS silicon devices.
